Bentonite GCl Geosynthetic Clay Liner For Waterproof And Impermeable Needs

We, Changsha Jianyi, is a geosynthetic clay liner (gcl) manufacturer in China. Our GCL price is competitive in abroad and domestic market with good quality.

Geosynthetic Clay Liner introduction

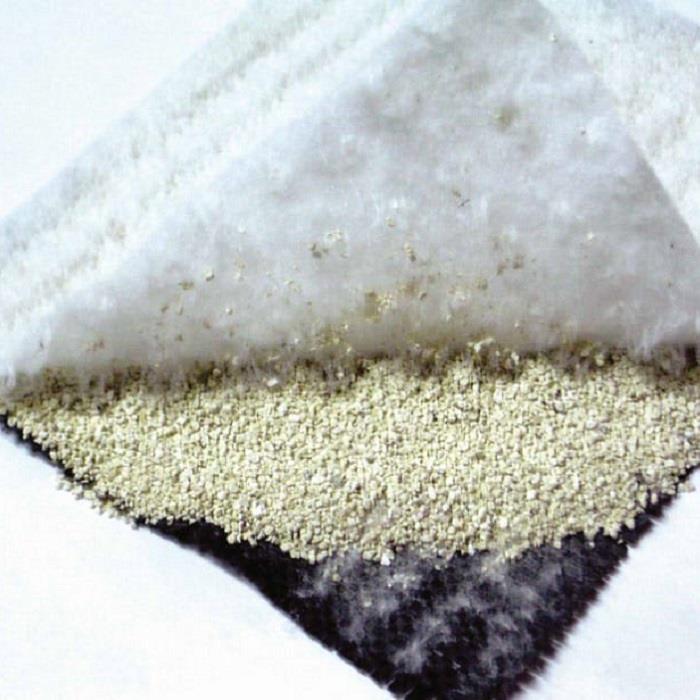

It is betonite geo-synthetic waterproofing barrier. It is self-attaching and self -sealing to concrete or other construction structures. It is made of a non-woven geotextile, a natural sodic bentonite layer, with or without a pe geomembrane layer, and a polypropylene sheet.

These layers are connected with a dense felter that makes the bentonite a self-confinement with controlled expansion. With this system it is possible to avoid slippage and the accumulation of bentonite as a consequence of cuts, tears, vertical applications and movements.

Its performance can meet or exceed GRI-GCL3 and our national standard JG/T193-2006.

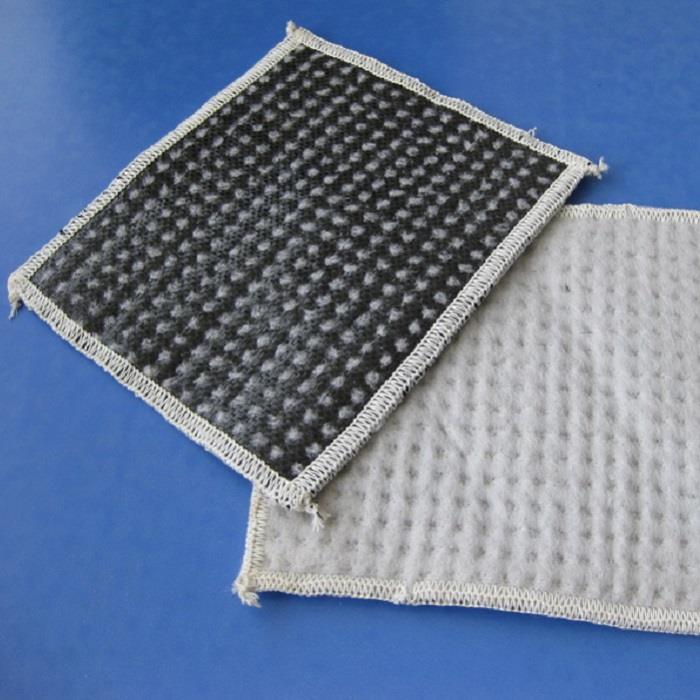

Bentonite clay liner Geosynthetic Clay Liners Membrane supported GCL

Geosynthetic Clay Liner product process:

1. Material Preparation

   • Sodium bentonite (high-swelling clay) is purified and dried.

   • Geotextile layers (woven/nonwoven polypropylene or polyester) are prepared.

2. Bentonite Spreading

   • Bentonite powder (4.5–5 kg/m²) is evenly distributed between two geotextile layers.

3. Bonding Process

   • Needle-punching: Fibers are mechanically entangled to hold bentonite in place.

   • Stitching/Adhesive bonding (optional): Some GCLs use stitching or glue for extra strength.

4. Calendering (Optional)

   • Rollers compress the blanket for better density and uniformity.

5. Quality Control

   • Tests include peel strength, hydraulic conductivity, and bentonite distribution.

6. Cutting & Rolling

   • The blanket is cut to size and rolled for packaging.

GCl Geosynthetic Clay Liner Function:

The engineering function of a GCL is containment as a hydraulic barrier to water, leachate or other liquids and sometimes gases.

As such, they are used as replacements for either compacted clay liners or geomembranes, or they are used in a composite manner to augment the more traditional liner materials.

The ultimate in liner security is probably a three component composite geomembrane/geosynthetic clay liner/compacted clay liner which has seen use as a landfill liner on many occasions.

Product Specification

* Unit Weight: ≥4000g/㎡ (customized request accept)
* Width: 4m~6m

* Roll Length:
PS: Customized request accept for all above.

Product Specification and Technical Index (JG/T 193-2006)

Geosynthetic Clay Liner Application

Founded in 2008, Jianyi group  is a large production base of solid waste safe landfill and engineering protective materials in China. The company has participated in the major infrastructure construction of the country and the "the Belt and Road", the construction of emergency epidemic prevention projects in Wuhan Huoshen mountain, Leishen mountain and Guangzhou Eighth People's Hospital, the national strategy for special treatment of heavy metals, the landfill and incineration of urban domestic waste, industrial waste, hazardous waste disposal and other environmental protection projects, provided a large number of high-quality new geotechnical environmental protection materials for the partners, and provided overall solutions for the project.
