Staple Geotextile Lightweight And Durable For Highway And Railway
Projects
Product Introduction
Staple fiber geotextile is an important geosynthetic material,
mainly from polyester or polypropylene staple fiber as raw
materials, through the opening, carding, clutter, laying and
needling technology to produce.

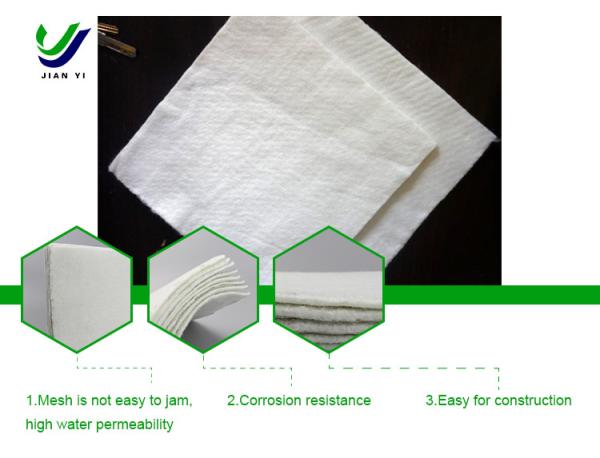

Product Properties
1. The mesh is not easy to plug: The network structure formed by
the amorphous fiber tissue has a deformation and movement.
2. High permeability: under the pressure of earthwork, it can still
maintain good water permeability.
3. Corrosion resistance: polypropylene or polyester and other
chemical fiber as raw materials, acid and alkali resistance, no
corrosion, no moth, anti-oxidation.
4. Easy construction: light weight, easy to use.
Product Application
1. Environmental protection projects: such as landfills, industrial
slag fields of chemical plants, etc.
2. Water conservancy projects: including seawall, river dyke, river
dyke, lake dyke project, reservoir reinforcement project,
encircling reclamation project, flood prevention and rescue.
3. Highway, railway and airport engineering: used for soft
foundation reinforcement treatment, slope protection, road remote
reflection, fracture structure bumble, drainage system, green
isolation belt and so on.
4. Power plant engineering: nuclear power plant foundation
engineering, thermal power ash dam engineering, hydropower station
engineering.
5. Port channel engineering: port wharf engineering, ship lock
engineering, channel management engineering, etc.
Product Specification
* Grams/㎡: 100g~800g/㎡
* Width:2m~6m
* Roll length:50m~100m
PS: Customized request accept for all above.
Product Specification and Technical Index (GB/T 17638—2017)
| Item | Nominal Breaking Strength(KN/m) |
| 3 | 5 | 8 | 10 | 15 | 20 | 25 | 30 | 40 |
| 1 | Breaking Strength (KN/m,≥,LD/TD) | 3.0 | 5.0 | 8.0 | 10.0 | 15.0 | 20.0 | 25.0 | 30.0 | 40.0 |
| 2 | Elongation Rate (%,≥,LD/TD) | 20~100 |
| 3 | Bursting Strength(KN)≥ | 0.6 | 1.0 | 1.4 | 1.8 | 2.5 | 3.2 | 4.0 | 5.5 | 7.0 |
| 4 | Mass Deviation Rate Per Unit Area(%) | ±5 |
| 5 | Width Variation ( ％) | -0.5 |
| 6 | Thickness Deviation Rate(%) | ±10 |
| 7 | Sieve Size O90,O95 (mm) | 0.07~0.20 |
| 8 | Vertical Permeability Coefficient (cm/s) | Kx(10ˉ1-10ˉ3) K=1.0-9.9 |
| 9 | Tearing Strength (KN,≥,MD/CD) | 0.10 | 0.15 | 0.20 | 0.25 | 0.40 | 0.50 | 0.65 | 0.80 | 1.00 |
| 10 | Acid And Alkali Resistance (Strength Retention Rate)/%≥ | 80 |
| 11 | Antioxidant Performance (Strength Retention Rate)/%≥ | 80 |
| 12 | UV Resistance(Strength Retention Rate)/%≥ | 80 |
(GB/T17638-1998)
| Specification | F100 | F150 | F200 | F250 | F300 | F350 | F400 | F450 | F500 | F600 | 800 | Remark |
| Item | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 |
| Weight Variation (%) | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | - |
| Thickness (mm≥) | 0.90 | 1.20 | 1.70 | 2.10 | 2.40 | 2.70 | 3.00 | 3.20 | 3.60 | 4.10 | 5.00 | |
| Width Variation ( ％) | -0.50 |
| Breaking Strength (KN/m,≥,LD/TD) | 2.50 | 4.50 | 6.50 | 8.00 | 9.50 | 11.00 | 12.50 | 14.00 | 16.00 | 19.00 | 25.00 | |
| Elongation Rate (%,≥,LD/TD) | 25-100 |
| CBR Burst Strength ( KN≥) | 0.30 | 0.60 | 0.90 | 1.20 | 1.50 | 1.80 | 2.10 | 2.40 | 2.70 | 3.20 | 4.00 | |
| Sieve Size O90,O95 (mm) | 0.07-0.2 | |
| Vertical Permeability Coefficient (cm/s) | Kx(10ˉ1-10ˉ3) | K=1.0-9.9 |
| Tearing Strength (KN,≥,MD/CD) | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.60 | |
1) Specifications according to the mass per unit area, the actual
specification between adjacent specifications in the table,
according to the interpolation method to calculate the
corresponding assessment index, if beyond the scope in the table,
shall be determined between supplier and the demander.
2) Unit Weight standards according to the design or agreement.
3) Width as reference indexes for internal control of production,
the appraisal based on the actual design value if user raised
requests. |
