100g-800g/M2 Staple Fiber Geotextile With High Water Permeability
Drainage filtration Improve project quality and reduce construction
costs
Product Introduction
We manufactured staple fiber PET nonwoven geotextile is processed
in needle-punched way without chemical additive using 100%
polyester fabrics. Polyester staple fibers are bonded by
mechanically entangling the fibers with barbed needles.
Advantages of Staple Fiber Geotextile
1.Requires less aggregate during construction；
2.Separates aggregate from soil, doubling the useful road life；
3.Provide superior hydraulics and soil retention to support
filtration；
4.Mitigates dust in unpaved roads；
5.Provides cushioning and protection for critical lining systems；
6.Resists chemicals and microorganism to support long usage life；
7.Resists biological and chemical environments normally found in
soils；
8.Installs faster than traditional methods reducing overall
construction time.
Staple Fiber Geotextile Production Process
The production of Jianyi High Staple Fiber Geotextile as follows:
Raw material:
Polyethylene Ployester

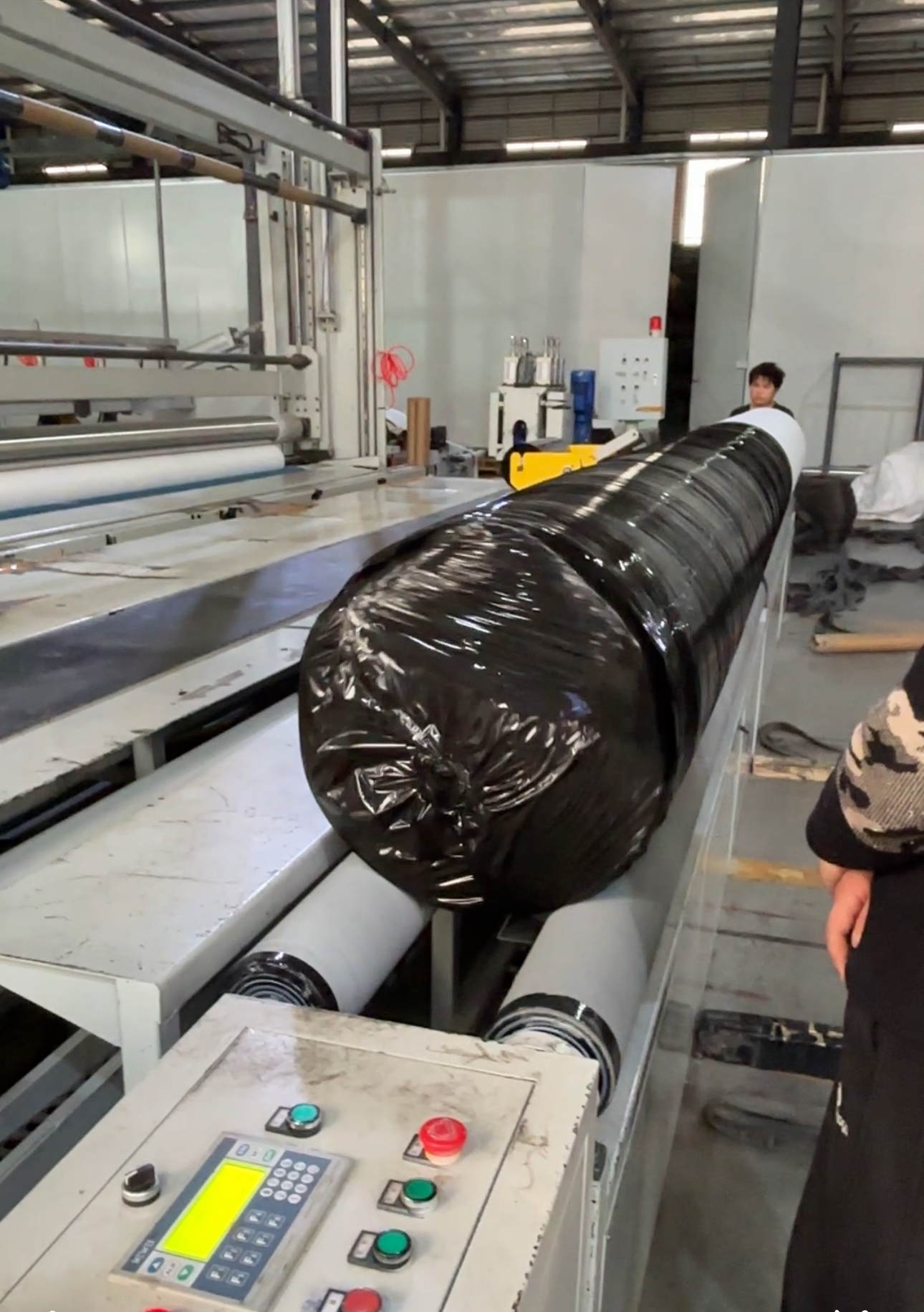

Production process:
Web forming Rolling Package

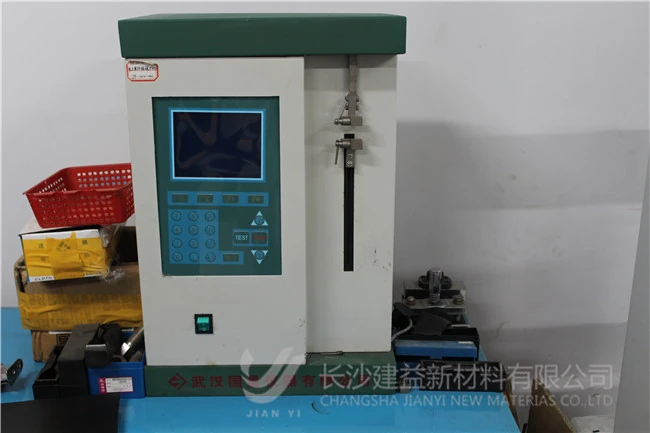

Our product parts of testing equipments:

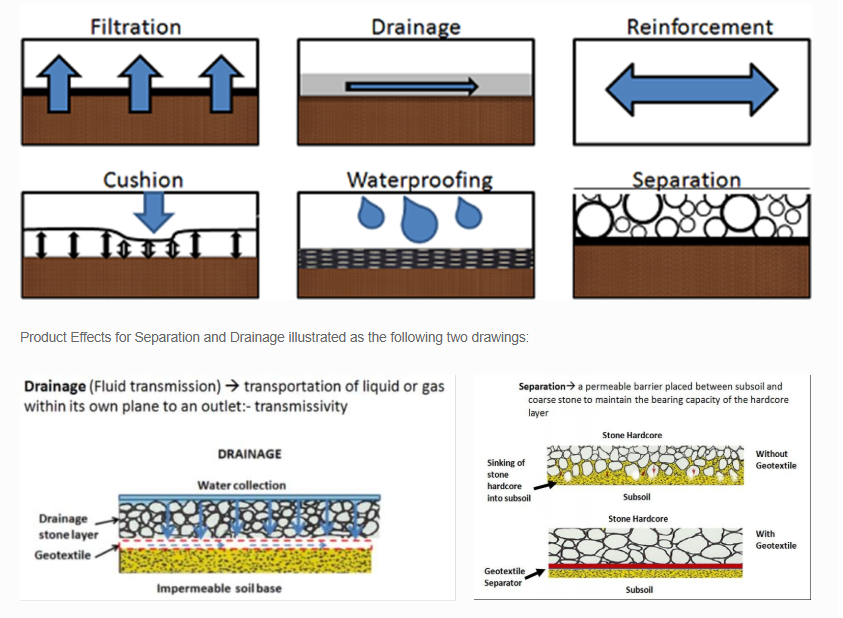

Product Application
*Isolation layers between artificial fill, rockfill, or material
yards and foundations, as well as between different frozen soil
layers, also serving as filtration and reinforcement.
* Filter layers for the initial upstream slope of ash dams or
tailings dams, and for drainage systems in backfill behind
retaining walls.
* Geotextile isolation layers between roadbeds, airports, railway
ballast, artificial rockfill, and foundations.
*Vertical or horizontal internal drainage within earth dams to
dissipate pore water pressure.
* Drainage behind impermeable geomembranes in earth dams or levees,
or beneath concrete lining.
* Draining seepage around tunnels to reduce external water pressure
on linings and seepage around structures.
* Drainage for artificial fill foundations and sports field
foundations.
*Reinforcement of weak foundations in roads (including temporary
roads), railways, embankments, earth-rock dams, airports, sports
fields, and other engineering applications.
Product Specification
Product Specifications of Jianyi as follows:
* Weight(g/㎡): 100g-800g/㎡
* Width:1m~6m
* Roll length: 50m~100m (customized request accept)
PS: Customized request accept for all above.
Product Specification and Technical Index (GB/T 17638—2017)
| Item | Nominal Breaking Strength(KN/m) |
| 3 | 5 | 8 | 10 | 15 | 20 | 25 | 30 | 40 |
| 1 | Breaking Strength (KN/m,≥,LD/TD) | 3.0 | 5.0 | 8.0 | 10.0 | 15.0 | 20.0 | 25.0 | 30.0 | 40.0 |
| 2 | Elongation Rate (%,≥,LD/TD) | 20~100 |
| 3 | Bursting Strength(KN)≥ | 0.6 | 1.0 | 1.4 | 1.8 | 2.5 | 3.2 | 4.0 | 5.5 | 7.0 |
| 4 | Mass Deviation Rate Per Unit Area(%) | ±5 |
| 5 | Width Variation ( ％) | -0.5 |
| 6 | Thickness Deviation Rate(%) | ±10 |
| 7 | Sieve Size O90,O95 (mm) | 0.07~0.20 |
| 8 | Vertical Permeability Coefficient (cm/s) | Kx(10ˉ1-10ˉ3) K=1.0-9.9 |
| 9 | Tearing Strength (KN,≥,MD/CD) | 0.10 | 0.15 | 0.20 | 0.25 | 0.40 | 0.50 | 0.65 | 0.80 | 1.00 |
| 10 | Acid And Alkali Resistance (Strength Retention Rate)/%≥ | 80 |
| 11 | Antioxidant Performance (Strength Retention Rate)/%≥ | 80 |
| 12 | UV Resistance(Strength Retention Rate)/%≥ | 80 |
(GB/T17638-1998)
| Specification | F100 | F150 | F200 | F250 | F300 | F350 | F400 | F450 | F500 | F600 | 800 | Remark |
| Item | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 |
| Weight Variation (%) | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | - |
| Thickness (mm≥) | 0.90 | 1.20 | 1.70 | 2.10 | 2.40 | 2.70 | 3.00 | 3.20 | 3.60 | 4.10 | 5.00 | |
| Width Variation ( ％) | -0.50 |
| Breaking Strength (KN/m,≥,LD/TD) | 2.50 | 4.50 | 6.50 | 8.00 | 9.50 | 11.00 | 12.50 | 14.00 | 16.00 | 19.00 | 25.00 | |
| Elongation Rate (%,≥,LD/TD) | 25-100 |
| CBR Burst Strength ( KN≥) | 0.30 | 0.60 | 0.90 | 1.20 | 1.50 | 1.80 | 2.10 | 2.40 | 2.70 | 3.20 | 4.00 | |
| Sieve Size O90,O95 (mm) | 0.07-0.2 | |
| Vertical Permeability Coefficient (cm/s) | Kx(10ˉ1-10ˉ3) | K=1.0-9.9 |
| Tearing Strength (KN,≥,MD/CD) | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.60 | |
1) Specifications according to the mass per unit area, the actual
specification between adjacent specifications in the table,
according to the interpolation method to calculate the
corresponding assessment index, if beyond the scope in the table,
shall be determined between supplier and the demander.
2) Unit Weight standards according to the design or agreement.
3) Width as reference indexes for internal control of production,
the appraisal based on the actual design value if user raised
requests. |
Jianyi have Eight production lines, so we can supply complete
specifications to meet different requirements of our customers.
- Smooth geomenbrane and Rough geomenbrane production line.
- Long fiber geotextile production line and Staple fiber geotextile
production line
- Composite geomembrane production line
- 3m and 6m Compound drainage network production line
- Bentonite waterproof blanket production line
Jianyi ---Your Professional Staple fabric geotextile Manufacturer
Jianyi New Material Co.,Ltd, which is the professional manufacturer
specialized in R&D, produce, sales and installation of
environmentally friendly materials.
We have one advanced imported geomembrane production line, two
world-class Staple fabric geotextile production lines, and one
textured HDPE geomembrane production line. Our capacity of
Geotextile can be 60 metric tons per day.
Jianyi is the largest manufacturer of Geotextile in Hunan,we are one of
the member units of HNWPA.
We have certificated by ISO9001, ISO14001 ISO45001 and CE.
ISO9001:2015 ISO14001:2015 ISO45001:2018 CE:2025
We have about 20 patents, part of them as follows:
Patent for Geotextile Netting Machine/Composite geomat
patent/Patent for composite film trimming device ect.
Changsha Jianyi have participated in many large-scale exhibitions
abroad, such as Indonsia, Vietam, Russia , India, Philippine,
Myanmar, Combodia etc ,our Geotextile products are deeply loved by
exhibitors.
Changsha Jianyi have built a long term cooperation with many famous
enterprises:

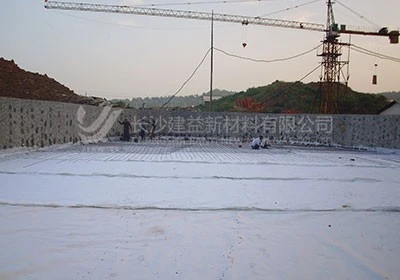

Staple fabric geotextile Installation Specification
1)Base Layer Inspection
Inspect the base layer to ensure it is level and compact. Remove
any foreign objects and treat the surface properly if necessary.
2)Trial Placement
Determine the geotextile dimensions based on site conditions and
conduct a trial placement after accurate cutting.
3)Overlap Inspection
Check that the overlap width is appropriate, ensuring the joint is
flat and tension is properly balanced.
4)Positioning & Bonding
Use a hot air gun to bond the overlapping sections of two
geotextile sheets, maintaining proper spacing between bonding
points.
5)Stitching Standards
When stitching the overlap, ensure the thread is straight and
stitches are evenly spaced.
6)Post-Installation Inspection
After stitching, inspect the geotextile to confirm it is laid flat
and free of defects.
7)Repair of Defects
If any non-compliant issues are found, perform immediate repairs.
FQA
1.Geotextile Damage and Repair
Stitched Seams: Damaged stitched seams must be re-stitched, ensuring that any
skipped stitches are properly repaired at the ends.
Holes & Tears: In all areas except rock slopes, holes or tears must be patched
and stitched using a geotextile patch of the same material.
Landfill Baselines: If the length of a tear exceeds 10% of the roll width, the damaged section must be cut out, and the two remaining
geotextile sections must be reconnected.
2.Things to note
Cutting Requirements
Geotextiles must only be cut using a geotextile hook knife. If
cutting on-site, special protective measures must be taken to
prevent unnecessary damage to other materials.
Underlayer Protection
During installation, all necessary precautions must be taken to
avoid damaging the underlying material.
Debris Prevention
Ensure that rocks, excessive dust, moisture, or any other
substances that may damage the geotextile, clog drainage
channels/filters, or hinder proper connections do not enter beneath
or within the geotextile.
Post-Installation Inspection
After installation, visually inspect all geotextile surfaces to
identify and mark any damaged areas for repair. Verify that no
foreign objects (e.g., broken needles) remain on the surface that
could cause damage.
Seaming Regulations
Horizontal seams are generally prohibited on slopes—all seams must
follow the slope’s contour without intersecting it, except for
repair sections.
Stitching Standards
If seaming, the stitching thread must be of the same or higher
quality as the geotextile and resistant to chemicals and UV
radiation. The thread color must contrast with the geotextile for
easy inspection.
Seam Protection During Installation
Pay special attention during stitching to prevent soil or gravel
from the cover layer from penetrating the geotextile seams.
