Thi-Dimension Compound Geonet For Drainage Superior Drainage And
Protection System
Product Introduction
Thi-dimension compound geonet for drainage is made of a unique
thi-dimension geonet and adhesive with geotextiles on both sides.
It has the property of geotextile(filtration) and geonet(drainage
and protection), it provide a complete function system"
filtration-drainage-protection". The core of net with its unique
tri-dimension structure can bear higher compressing load in
construction and remanin the certain thickness, provide a good
water conductivity.
3D drainage geonet 3D drainage network Drainage-geonet-HF10
Tri Dimension Composite Geonet Function
♦ Excellent drainage function, can bear long time high press load.
♦ High tensile and shear strength.
♦ Reduce the rate of geotextile embedding into the core of geonet,
it can protect the water conductivity stable and long time.
♦ Can bear more than 2000kpa compression load.
♦ The anti-compression capacity is much higher than the common
drainage geonet.

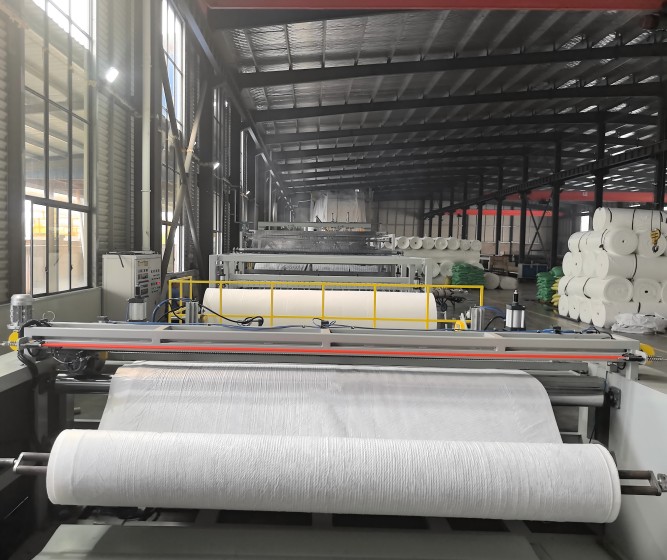

Tri Dimension Composite Geonet Production
Material Preparation
Extrusion & Molding
Cooling & Shaping
Geotextile Lamination
Cutting & Rolling
Quality Control
Packaging
Tri Dimension Composite Geonet Specification
Product Specification and Technical Index
| Drainage network core | Specification |
| Unit Weight(g/m2) | 750 | 1000 | 1300 | 1600 | 1800 |
| Thickness(OV=20pa, mm) | 5.0 | 6.0 | 7.0 | 7.6 | 8.0 |
| Hydraulic Conductivity(m/s) | K×10-4 | K×10-4 | K×10-3 | K×10-3 | K×10-3 |
| Elongation Rate(%) | < 50 | < 50 | < 50 | < 50 | < 50 |
| Tensile Strength(core network, KN/m) | 8 | 10 | 12 | 13 | 14 |
| Geotextiles(g/m2) | 200-200 | 200-200 | 200-200 | 200-200 | 200-200 |
(CJ/T 452—2014)
| Project | Index |
| Geotechnical drainage network | Geotechnical composite drainage network |
| Density/(g/cm³) | ≥0.939 | — |
| Carbon Black Content (%) | 2~3 | — |
| Longitudinal Tensile Strength/(KN/m) | ≥8.0 | ≥16.0 |
| Longitudinal Hydraulic Conductivity (Normal Load 500KPa, Hydraulic
Gradient 0.1)/(㎡/s) | ≥3.0×10-3 | ≥3.0×10-4 |
| Peel Strength/(KN/m) | — | ≥0.17 |
| Mass Per Unit Area Of Geotextile/(g/㎡) | — | ≥200 |
|
Tri Dimension Composite Geonet Application
1. Soft soil foundation drainage.
2. Back drain in retaining walls and dams.
3. Landfill drains.
4. Road drain
Application example:
Our tri-planar geonet heat-bonded with nonwoven geotextile is
applied in the protection of a retaining wall:
Tri Dimension Composite Geonet Installation
1. Orient the geosynthetics so that the length of the roll is
perpendicular to the road.
2. Geosynthetics must be terminated, with the geotextiles on
adjacent geonet cores overlapped along the roll.
3. Connect the rolls by connecting the geonet cores of adjacent
geosynthetics with white or yellow plastic buckles or polymer
straps. Connect with straps every 3 feet along the length of the
roll.
4. The overlapped geotextiles must be in the same direction as the
fill stacking.
If the geosynthetics are laid between the foundation/base and the
subbase, continuous wedge welding, flat head welding or stitching
should be performed to secure the upper layer of the overlapped
geotextiles.
If stitching is used, it is recommended to use the flat head
stitching method or the general stitching method to achieve the
economical requirements of the stitch length.
Jianyi ---Your Professional Composite Geonet Manufacturer
Jianyi New Material Co.,Ltd, which is the professional manufacturer
specialized in R&D, produce, sales and installation of
environmentally friendly materials.
We have one advanced imported geomembrane production line, two
world-class HDPE geomembrane production lines, and one textured
HDPE geomembrane production line. Our capacity of HDPE geomembrane
can be 60 metric tons per day.
Jianyi is the largest manufacturer of Composite Geonet in Hunan,we are
one of the member units of HNWPA.
We have certificated by ISO9001, ISO14001 ISO45001 and CE.
We have about 20 patents, part of them as follows:
Patent for Geotextile Netting Machine/Composite geomat
patent/Patent for composite film trimming device ect.
Changsha Jianyi have participated in many large-scale exhibitions
abroad, such as Indonsia, Vietam, Russia , India, Philippine,
Myanmar, Combodia etc ,our HDPE geomembrane products are deeply
loved by exhibitors.
Changsha Jianyi have built a long term cooperation with many famous
enterprises:
FAQ
Q1: How can we get a sample from you?
A1: Just contact us by email or phone or other contact ways and we
will arrange to courier to you.
Q2: What is your MOQ?
A2: 1roll, around 180㎡
Q3: Can you send technicians to help us install them?
A3: Of course, yes. We can offer installation price and make some
agreements.
