Waterproof And Anti-Seepage HDPE Smooth Geomembrane For Civil
Engineering Projects

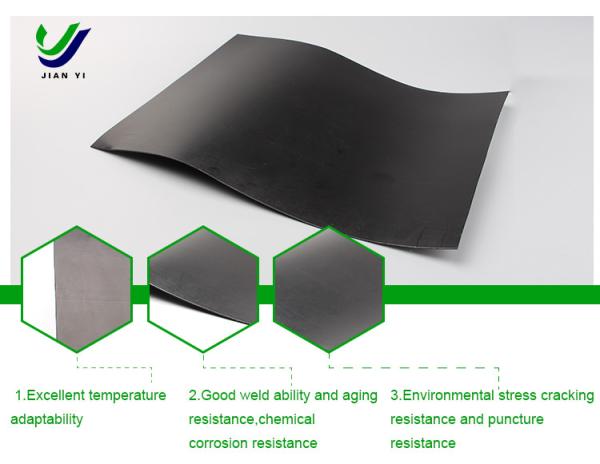

Product Introduction
Smooth geomembrane, also known as smooth geomembrane, is a widely
used waterproof barrier geosynthetic material. The material is
based on high molecular polymer, adding carbon black, antioxidant,
anti-aging agent, ultraviolet absorber and color masterbatch and
other auxiliary materials through special formula.
Product Properties
1. Low permeability: Smooth geomembrane has extremely low
permeability, which can effectively prevent the passage of water
and pollutants.
2. Chemical and ultraviolet resistance: Excellent chemical and
ultraviolet resistance make the material resistant to various
chemical substances and prolonged exposure to sunlight.
3. High cost performance: Compared with other similar products,
smooth geomemofilm has a higher cost performance, is the first
choice for civil engineering seepage prevention materials.
4. Strong adaptability: wide temperature adaptability, can be used
in extreme weather conditions.
Product Application
1. Water conservancy and environmental protection: applied to the
anti-seepage reinforcement of river dikes, lake DAMS, tailings
DAMS, etc.
2. Municipal engineering: such as subway, building underground
engineering, planting roof anti-seepage lining.
3. Aquaculture: Suitable for seawater, freshwater fish and shrimp
farms.
4. Garden engineering: It can be used for waterproofing and
moisture-proof of river, reservoir, artificial lake, etc.
5. Salt industry: salt field crystallization tank, halogen tank
cover and other occasions.
6. Transportation infrastructure: waterproof layer of highway,
railway foundation, etc.
7. Petrochemical industry: chemical plants, refineries, oil storage
tank anti-seepage lining, etc.
8. Mining engineering: the bottom lining of washing pool, pile
leaching pool, etc.
Product Specification
* Thickness(mm): 0.30mm~3.00mm
* Width:1m~9m
* Roll length: 30m~100m (customized request accept)
PS: Customized request accept for all above.
Geomembrane Series
Smooth HDPE Geomembrane For Landfill (GH-2S & GB/T 17643-2011)
| Specification | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm | 3.00mm | Remark |
| Item |
| Thickness (mm) | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm | 3.00mm | |
| Density (g/c㎡,≥) | 0.939 | |
| Tensile Properties |
| Yield Strength (N/mm,LD/TD) | 11 | 15 | 18 | 22 | 29 | 37 | 44 | |
| Breaking Strength (N/mm,LD/TD) | 20 | 27 | 33 | 40 | 53 | 67 | 80 | |
| Yeild Elongation Rate (%) | 12 | |
| Breaking Elongation Rate (%) | 700 | |
| Rectangular Tear Strength (N) | 93 | 125 | 156 | 187 | 249 | 311 | 374 | |
| Puncture Strength (N) | 240 | 320 | 400 | 480 | 640 | 800 | 960 | |
Environmental Stress Crack Resistance (h)
(A single point of incision constant tensile method) | 300 | |
| Carbon Black |
| Carbon Black Content(Rang) (%) | 2.0~3.0 | |
| Carbon Black Dispersion | Nine of 10 observation area should be grade 1 or grade 2, not more
than 1 of grade3 | |
| Oxidative Induction Time (OIT) |
| Standard OIT (min) | 100 | |
| High Pressure OIT (min) | 400 | |
| 85℃ Oven Ageing (Minimum Average) |
| 90 days after baking, the standard OIT retention(%) | 55 | |
| 90 days after baking, the hight pressure OIT retention(%) | 80 | |
| The Anti-UV Strength |
| Ultraviolet irradiation after 1600 hours, the standard OIT
retention(%) | 50 | |
| Ultraviolet irradiation after 1600 hours, the high pressure OIT
retention(%) | 50 | |
| -70℃ The Low Temperature Embrittlement Performance mpact | Pass | |
| Water Vapor Penetration Coefficient g.cm (cm2.s.Pa) | ≤1.0X10-13 | |
| Dimensional Stability | ±2 | |
Product Specification and Technical Index (GH-1 & GB/T 17643-2011)
Specification
Item | 0.30 | 0.50 | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 | Remark |
| Thickness (mm) | 0.30 | 0.50 | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 | |
| Density (g/c㎡,≥) | 0.94 |
| Tensile Yield Strength (N/mm, ≥,LD/TD) | 4 | 7 | 10 | 13 | 16 | 20 | 26 | 33 | 40 | |
| Tensile Breaking Strength (N/mm, ≥,LD/TD) | 6 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | |
| Yield Elongation Rate (%,≥,LD/TD) | - | - | - | 11 | |
| Breaking Elongation Rate (%,≥,LD/TD) | 600 | |
| Rectangular Tear Load (N,≥,LD/TD) | 34 | 56 | 84 | 115 | 140 | 170 | 225 | 280 | 340 | |
| Puncture Strength (N,≥) | 72 | 120 | 180 | 240 | 300 | 360 | 480 | 600 | 720 | |
| Carbon Black Content (%) | 2.0~3.0 | |
| Carbon Black Dispersion | Less than 1date of Grade 3 out of 10 data, grade 4,grade 5 is not
allowed | |
