Glass Fiber Geogrid For The Treatment Of Mine Damage Areas In Water
Conservancy Irrigation And Embankment Reinforcement
Production Introduction

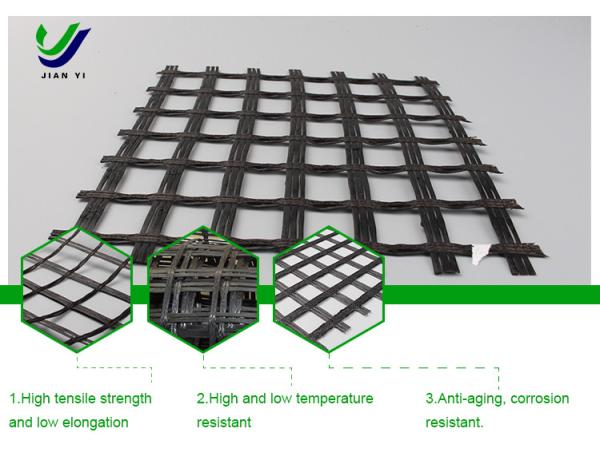

Glass fiber geogrid is a kind of high performance geocomposite
material, which is mainly made of non-alkali glass fiber roving
without twist through braiding and surface treatment technology.
Production Property
1. High strength and rigidity: Glass fiber geoglyph has high
tensile strength and rigidity, which can significantly enhance the
bearing capacity and stability of soil.
2. Chemical resistance and corrosion resistance: Due to the
characteristics of glass fiber materials, the product has excellent
chemical resistance and corrosion resistance, suitable for a
variety of harsh environments.
3. Low elongation and high elastic modulus: the elongation of the
glass fiber geoglyceris is low (not more than 3%), but the elastic
modulus is high, which makes it still able to maintain stable
performance under long-term load.
4. Fatigue cracking and creep resistance: glass fiber geoglishes
can effectively resist fatigue cracking and creep and extend the
service life of the structure.
Production Application
1. Road, railway and airport roadbed enhancement: glass fiber
geoglass is often used for road, railway and airport roadbed
enhancement, can effectively improve the soil bearing capacity,
prevent roadbed settlement and deformation.
2. Slope protection: In slope protection engineering, glass fiber
geogrid can effectively prevent soil landslide and improve slope
stability.
3. Asphalt pavement and cement pavement reinforcement: glass fiber
geoglass is widely used in asphalt pavement and cement pavement
reinforcement, especially in the treatment of reflective cracks,
has become an irreplaceable material.
4. Water irrigation and levee reinforcement: In water irrigation
and levee reinforcement projects, glass fiber geoglishes also play
an important role, which can effectively enhance the stability and
durability of levees.
5. Mine damage area treatment: In mine damage areas, glass fiber
geogrid is used for foundation treatment and reinforcement to
restore the stability of the foundation.
Product Specification and Technical Index
| Specification Item | GSB 25-25 | GSB 30-30 | GSB 40-40 | GSB 50-50 | GSB 80-80 | GSB 100-100 | GSB 120-120 | GSB25-25 Self adhesive | GSB3030 Self adhesive | GSB4040 Self adhesive | GSB5050 Self adhesive | GSB8080Self adhesive | GSB100100 Self adhesive | GSB120120 Self adhesive |
| Tensile Strength (KN/m) | LD | ≥25 | ≥30 | ≥40 | ≥50 | ≥80 | ≥100 | ≥120 | ≥25 | ≥30 | ≥40 | ≥50 | ≥80 | ≥100 | ≥120 |
| TD | ≥25 | ≥30 | ≥40 | ≥50 | ≥80 | ≥100 | ≥120 | ≥25 | ≥30 | ≥40 | ≥50 | ≥80 | ≥100 | ≥120 |
| Tensile Elongation (%) | LD | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 |
| TD | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 |
| Grid Size (mm×mm) | 12~50 | 12~50 | 12~50 | 12~50 | 12~50 | 12~50 | 12~50 | 12~50 | 12~50 | 12~50 | 12~50 | 12~50 | 12~50 | 12~50 |
| Width (m) | 1~6 | 1~6 | 1~6 | 1~6 | 1~6 | 1~6 | 1~6 | 1~6 | 1~6 | 1~6 | 1~6 | 1~6 | 1~6 | 1~6 |
