Foundation Reinforcement Environmental Protection Material Biaxial
Plastic Geogrid
Product Introduction
Bidirectional plastic geoglage is a new type of geomaterial, which
is mainly processed by high polymer through special technology. Its
structure is grid-like and has the characteristics of bidirectional
tensile, which makes it have great tensile strength in both
longitudinal and transverse.
Product Property
1. High strength: The bidirectional plastic geoggrid has a high
mechanical strength, which can effectively enhance the bearing
capacity of the soft soil foundation and prevent surface cracks and
collapse.
2. Corrosion resistance and anti-aging: Due to its high polymer
material, it has good corrosion resistance and anti-aging
properties, and is suitable for engineering under various
environmental conditions.
3. Light and easy to install: Light weight, easy to transport and
install, convenient construction, can shorten the construction
period and reduce maintenance costs.
4. Environmental protection: As a new and environmentally friendly
reinforcement material, it meets the requirements of modern
environmental protection and sustainable development.

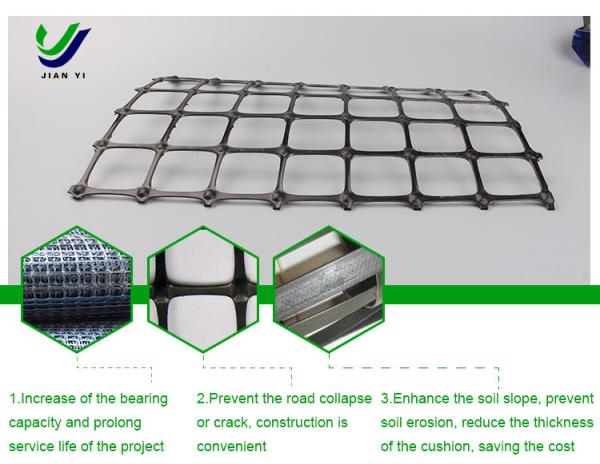

Product Application
1. Highway and railway roadbed reinforcement: used to improve the
mechanical properties of soft soil roadbed, improve the bearing
capacity, extend the service life.
2. Airport, wharf and other permanent bearing ground reinforcement:
these places need to bear heavy loads for a long time, and two-way
plastic geogles can effectively provide the necessary support.
3. Slope protection: used to prevent slope slip and collapse, to
ensure the stability of the slope.
4. Large-scale landfill project: enhance the structural stability
of landfill to prevent leakage and deformation.
5. Water conservancy, urban public works, gardens and other fields:
In these fields, two-way plastic geogles also play an important
role.
Product Specification and Technical Index
| Specification Item | TGSG15-15 | TGSG20-20 | TGSG25-25 | TGSG30-30 | TGSG35-35 | TGSG40-40 | TGSG45-45 | TGSG50-50 |
| Unit Weight (g/m2) | 300 ± 30 | 330 ± 30 | 380 ± 30 | 400 ± 30 | 450 ± 30 | 500 ± 30 | 550 ± 30 | 600 ± 30 |
| Width (m) | 4.0 5.0 | 4.0 5.0 | 4.0 5.0 | 4.0 5.0 | 4.0 5.0 | 4.0 5.0 | 4.0 5.0 | 4.0 5.0 |
| Tensile Strength (KN/m≥, LD) | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
| Tensile Strength (KN/m≥, TD) | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
| Yield Elongation (%≤, LD) | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 |
| Yield Elongation (%≤, TD) | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Tensile Strength at 2% Elongation (KN/m≥, LD) | 5 | 7 | 9 | 10.5 | 12 | 14 | 16 | 17.5 |
| Tensile Strength at 2% Elongation (KN/m≥, TD) | 5 | 7 | 9 | 10.5 | 12 | 14 | 16 | 17.5 |
| Tensile Strength at 5% Elongation (KN/m≥, LD) | 7 | 14 | 17 | 21 | 24 | 28 | 32 | 35 |
| Tensile Strength at 5% Elongation (KN/m≥, TD) | 7 | 14 | 17 | 21 | 24 | 28 | 32 | 35 |
