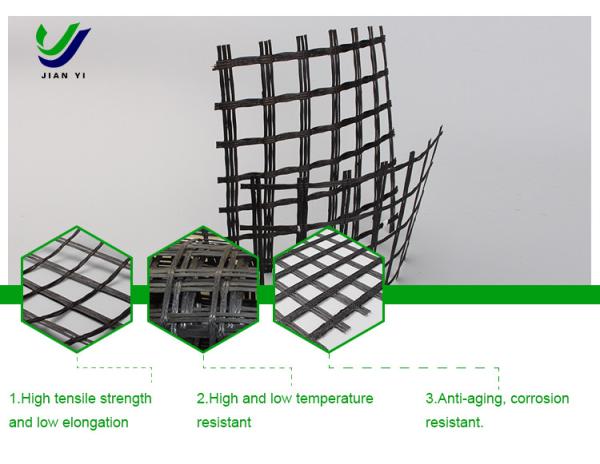

Railway Roadbed Fiberglass Geogrid With Low Temperature Resistance

Glass Fiber Geogrid With Excellent Low Temperature Resistance


Production Introduction


As a kind of high performance geosynthetic material, glass fiber geogrid plays an important role in road construction and maintenance. It can not only improve the tensile strength and durability of the road surface, but also effectively delay the appearance of reflection cracks, thus extending the service life of the road.


Production Property


1. Simple construction: glass fiber geogrid is easy to cut and lay, improve construction efficiency.
2. Environmental adaptability: Can adapt to different climatic conditions and complex environments, and maintain stable performance.
3. Economy: Although the initial investment may be relatively high, in the long run, maintenance costs can be saved due to its durability and low maintenance costs.


Production Application


1. Road, railway, airport roadbed reinforcement, used to enhance the asphalt surface layer or as a reinforced material.
2. The soil slope reinforced by unidirectional tensile geoglage is reinforced twice to further strengthen the soil slope and prevent soil erosion.
3. Railway and highway slope protection to protect slope stability.


Product Specification and Technical Index


Specification ItemGSB 25-25GSB 30-30GSB 40-40GSB 50-50GSB 80-80GSB 100-100GSB 120-120GSB25-25 Self adhesiveGSB3030 Self adhesiveGSB4040 Self adhesiveGSB5050 Self adhesiveGSB8080Self adhesiveGSB100100 Self adhesiveGSB120120 Self adhesive
Tensile Strength (KN/m)LD≥25≥30≥40≥50≥80≥100≥120≥25≥30≥40≥50≥80≥100≥120
TD≥25≥30≥40≥50≥80≥100≥120≥25≥30≥40≥50≥80≥100≥120
Tensile Elongation (%)LD≤3≤3≤3≤3≤3≤3≤3≤3≤3≤3≤3≤3≤3≤3
TD≤3≤3≤3≤3≤3≤3≤3≤3≤3≤3≤3≤3≤3≤3
Grid Size (mm×mm)12~5012~5012~5012~5012~5012~5012~5012~5012~5012~5012~5012~5012~5012~50
Width (m)1~61~61~61~61~61~61~61~61~61~61~61~61~61~6
